C3-Light Lightweight Algorithm Optimization under YOLOv5 Framework for Apple-Picking Recognition

1. Introduction

In recent years, with the development of artificial intelligence, intelligence has been realized in many scenes, and intelligent machinery has been used to replace manual labour. Among them, machine vision is widely used in scenes such as defect detection, picking and recognition. The YOLO algorithm has developed rapidly in recent years and occupies an important position in machine vision.

The YOLO series of algorithms plays an important role in the field of computer vision, and related studies are constantly emerging. Muhammad Hussain^[1] conducted a comprehensive review of YOLOv1 to v8, analyzing its architectural evolution, training strategies, and practical applications, pointing out that YOLO has innovative advantages in object detection but also faces some challenges, such as dealing with occlusion and fine-grained object detection. Junyan Tian et al. ^[2] proposed an object detection method based on YOLOv5 for intelligent sweeping robots, which improved the detection performance and model efficiency by introducing multiple modules . Jinsu An et al. ^[3] improved YOLOv5 for small object detection on satellite images by adding new feature fusion layers and prediction heads, etc., improving the detection accuracy. Jianting Shi et al. ^[4] improved YOLOv5 for steel surface defect detection by adding the attention mechanism and clustering the anchor boxes, improving the detection effect. Jianrong Cao et al. ^[5] proposed a hybrid underwater target detection algorithm based on YOLOv5 combined with CBAM and CloU, improving the feature extraction and fusion ability . Lijuan Sun et al. ^[6] proposed a lightweight apple detection method, YOLOv5-PRE, based on YOLOv5. By introducing lightweight structures and attention mechanisms, the detection performance was improved. Meiyan Li et al. ^[7] improved the YOLOv5 algorithm for remote sensing image target detection by clustering the anchor box and optimizing the model, improving the detection performance . Zexuan Guo et al. ^[8] proposed the MSFT-YOLO model based on Transformer for detecting steel surface defects. By adding modules and using multi-step training methods, the detection accuracy was improved. Yu Zhang et al. ^[9] proposed a vehicle detection method based on the improved YOLO v5, using the Flip-Mosaic algorithm to improve the detection accuracy. These studies provide valuable references and improvement directions for object detection in different scenarios.

The visual recognition algorithm for fruits has always been a crucial subject in the research on rapid detection of fruit yield. Several local and international researchers have developed various detection algorithms for different types of fruits, such as tomatoes ^[10–13], grapes ^[14–18], lychee ^[19–21], and apples ^[22–24]. Early target fruit detection methods mainly relied on traditional image processing or machine learning methods to identify fruits based on their colors, shapes, textures, and other features ^[25]. For example, Yu et al. [19] employed color and texture features to train the random forest binary classification model for identifying litchi fruits. The proposed method achieved a recognition accuracy rate of 89.92% for green litchi and 94.50% for red litchi. Additionally, Syazwani et al. ^[26] demonstrated excellent fruit counting performance by using ANN-GDX (Artificial Neural Network, Variable Learning Rate Backpropagation) classification to detect pineapple crown images, with an accuracy of 94.4%. As for Fu et al. ^[27], they focused on the combined HOG and LBP (Oriented Gradient and Local Binary Pattern) texture features while using the SVM (Support Vector Machine) classification algorithm. They achieved an average scale detection rate of 89.63% for bananas and an average detection time of 1.325 s, with the shortest detection time being 0.343 s. To sum up and considering different studies, the feature-based image processing method has a slow detection speed, low accuracy, and poor adaptability to the extreme lighting environment in the orchard.

2. Materials of data

2.1. Data Source

The apple image data set used in this research is collected with different apple orchards from the web. The images cover various growth stages of apples, different lighting conditions, and different angles and distances of shooting. In this study, 87 images have been collected and sifted from the Internet. In order to ensure the diversity and representability of the data set, after labelling using labelling tool, horizontal inversion and vertical inversion can be used to expand the data set, and 261 pictures can finally be obtained. Horizontal and vertical rotation of the image results are shown in the Figure. 1. Horizontal inversion is the mirror symmetry of the original image, and turn the original image upside down and the vertical inversion is gotten.

2.2. Data Annotation

The collected apple images are annotated using professional annotation tools - labelling. Each apple in the image is marked with a bounding box. Taking into account the limitations of the picking robot arm, the labels are divided into three categories (Figure. 2), U-cover (uncovered), A-cover (covered by apple), and T-cover (covered by tree). When it is applied to the picking of the robot arm, the unshielded fruit is picked first. If the shielded fruit of the apple becomes unshielded after the previous apple is picked, it is picked directly; otherwise, the robot arm changes the picking position through path planning. Tree branch occlusion has the lowest priority, and when only this state exists in the camera field of view, apples will move to the next picking position. The annotation process strictly follows the YOLO format to ensure the consistency and standardization of the annotation information.

2.3. Data Set Division

The data set is randomly divided into a training set and a validation set according to the ratio of 8.5:1.5. The training set is used to train the model, and the validation set is used to adjust the model parameters during the training process to prevent overfitting. The test set is randomly selected from all images for validation.

3. Method and Experimental setting

3.1. Method

You Only Look Once (YOLO), a real-time object detection technique, divides an image into grid cells and simultaneously predicts the bounding boxes and classes of objects within each cell. This unique approach endows YOLO with remarkable speed and precision in object detection. Over time, the YOLO algorithm has continuously evolved, culminating in the advanced YOLOv11. YOLO offers a diverse range of models with varying sizes, namely the n, s, m, l, and x scales, which are determined by specific scaling factors.

Lower versions of YOLO run faster but less accurate, and higher versions have improved accuracy, but have higher performance requirements for the hardware, increasing the cost of the hardware. Therefore, considering hardware cost and accuracy, the YOLOv5 version is the most widely used version. Among them, YOLOv5 6.1 is improved on the basis of 5.0, replacing the Focus module with the Conv module, which ensures accuracy and speeds up the detection speed. This study is optimized based on YOLOv5 6.1. The Figure 3 shows the network architecture of YOLOv5. The annotation of Attention is the insertion position of the attention mechanism in this study.

3.2. Proposed method

The environment for apple picking is complicated, and ordinary YOLOv5 will recognize items other than apples as apples in the recognition of complex scenes. Therefore, CBAM (Convolution block attention module) and LSE (Squeeze and Excitation) attention mechanism is added in the backbone network or feature fusion part.

The LSE attention mechanism aims to enhance the model's attention to important features by creating a bottleneck that weights the feature graph channels. The principle is that the input feature graph x is transformed by 1x1 and 3x3 convolution to get feature graph x1; At the same time, the local information is obtained by adaptive average pooling of x. After two 1x1 convolution and ReLU transformations, the attention diagram Att is obtained after Sigmoid activation, and its size is adjusted to be consistent with x1. Then Att and x1 are multiplied element by element to get the weighted feature map, and residual connections can be made according to the conditions. The mechanism has many advantages, such as enhanced feature representation to improve detection accuracy, local and global information fusion, high flexibility and adaptability with adaptive average pooling and adjustable parameters, and a good balance between computational efficiency and performance through 1x1 convolution, reduction of BatchNorm2d layer and residual connection.

The CBAM attention can weigh features in channel dimension and spatial dimension, so that the network pays more attention to the key feature areas of apple, and suppress the interference of background and irrelevant information. In the channel attention module, through global average pooling and multi-layer perceptron processing of features of different channels, the importance weight of each channel is learned, so as to highlight the channel where the apple features are located. In the spatial attention module, the feature map is pooled in the horizontal and vertical directions to obtain the spatial attention weight and further focus on the location region of the apple.

Due to the mobile factors of apple picking devices, the size of the hardware is limited. At present, most devices for processing visual information use small intelligent microcontrollers such as Raspberry PI, but in actual use, YOLOv5 is still difficult to use on this hardware and often occurs. In view of this situation, the lightweight detection network is proposed to reduce the stackage during operation, and the C3 module is improved (C3-Light) to reduce the network pressure and adapt to the microcontroller, the corresponding C3-Light principle is given in the Figure 4. In this study, the addition of the attention model and replacement of the C3 model are in the backbone part of the model.

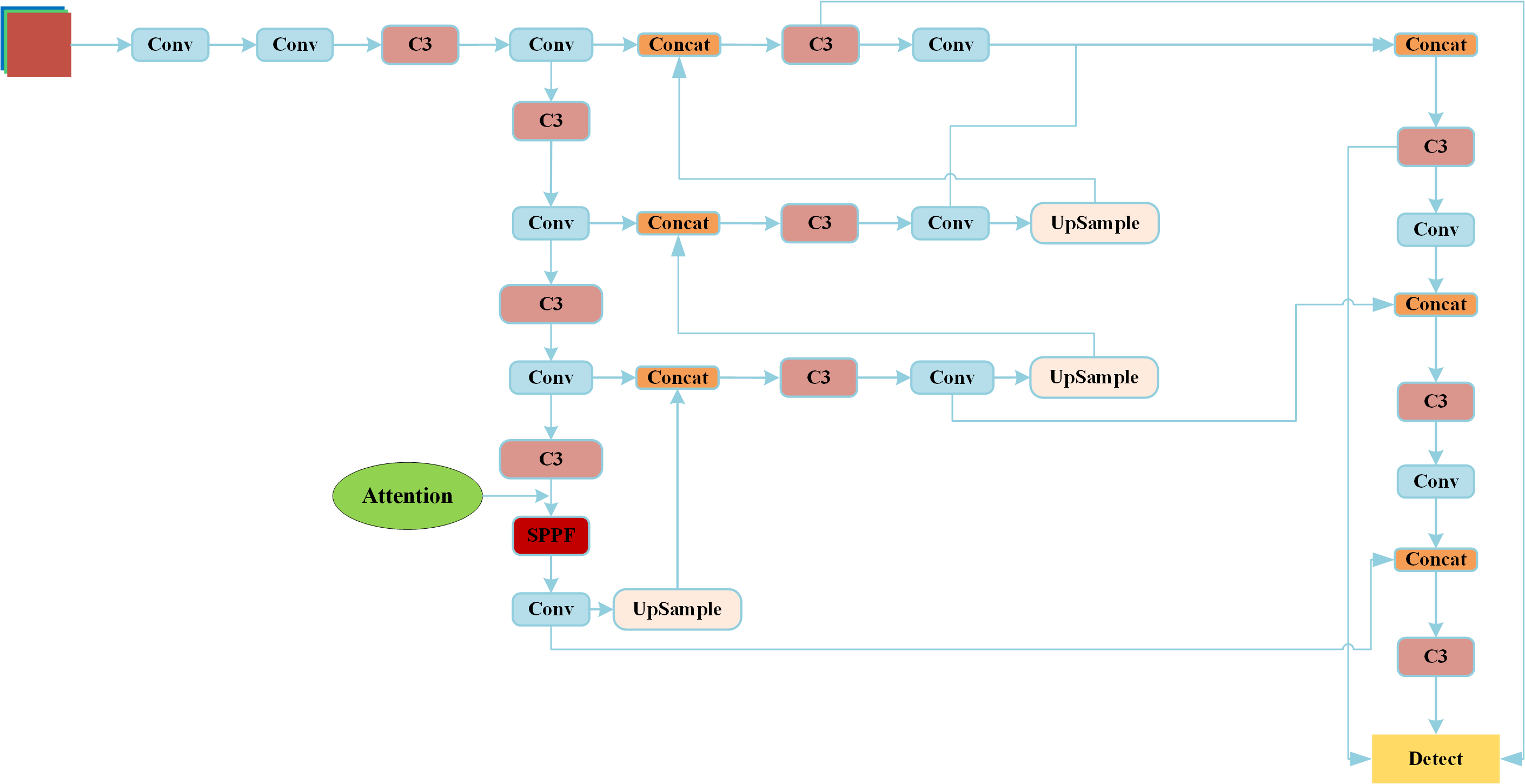

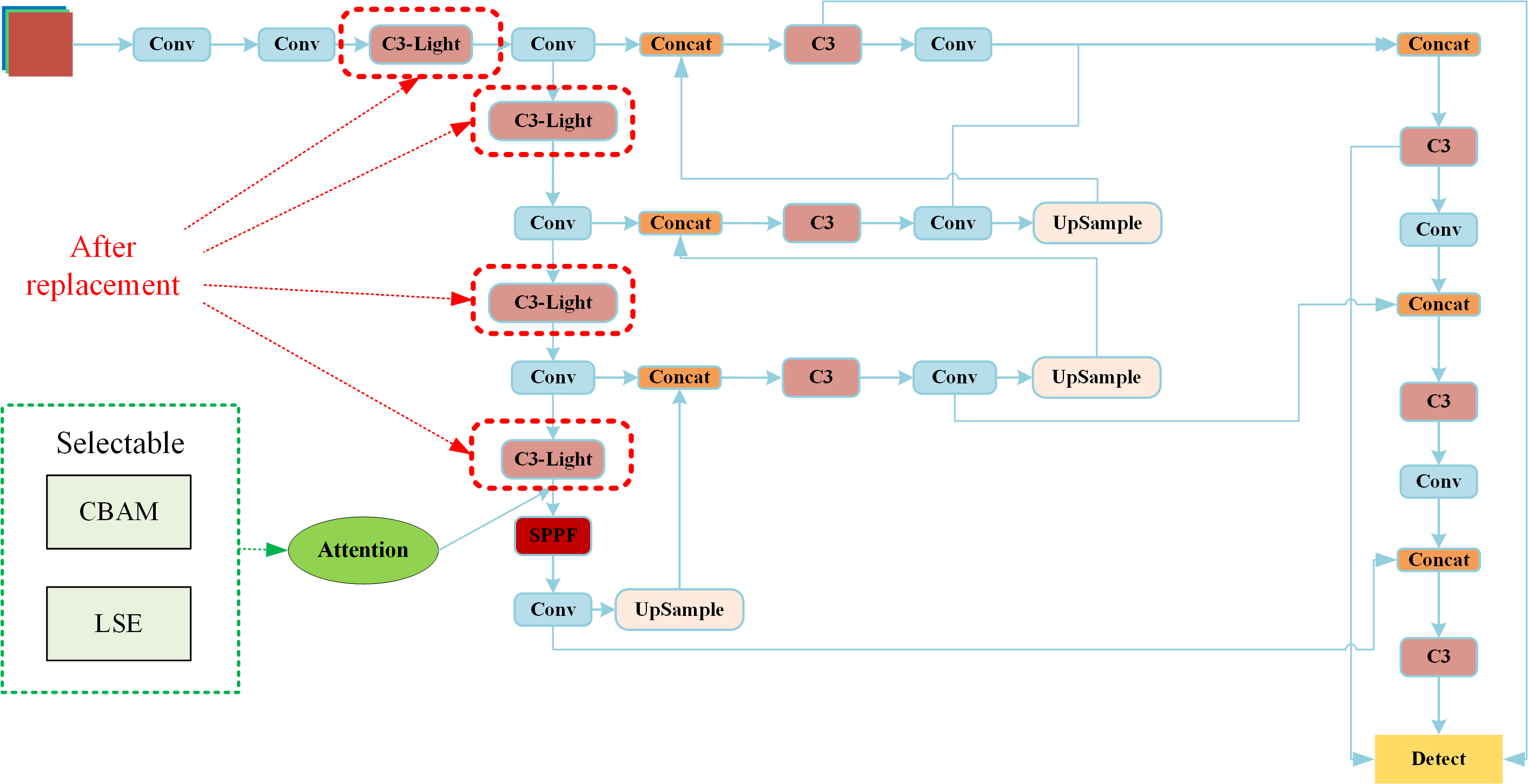

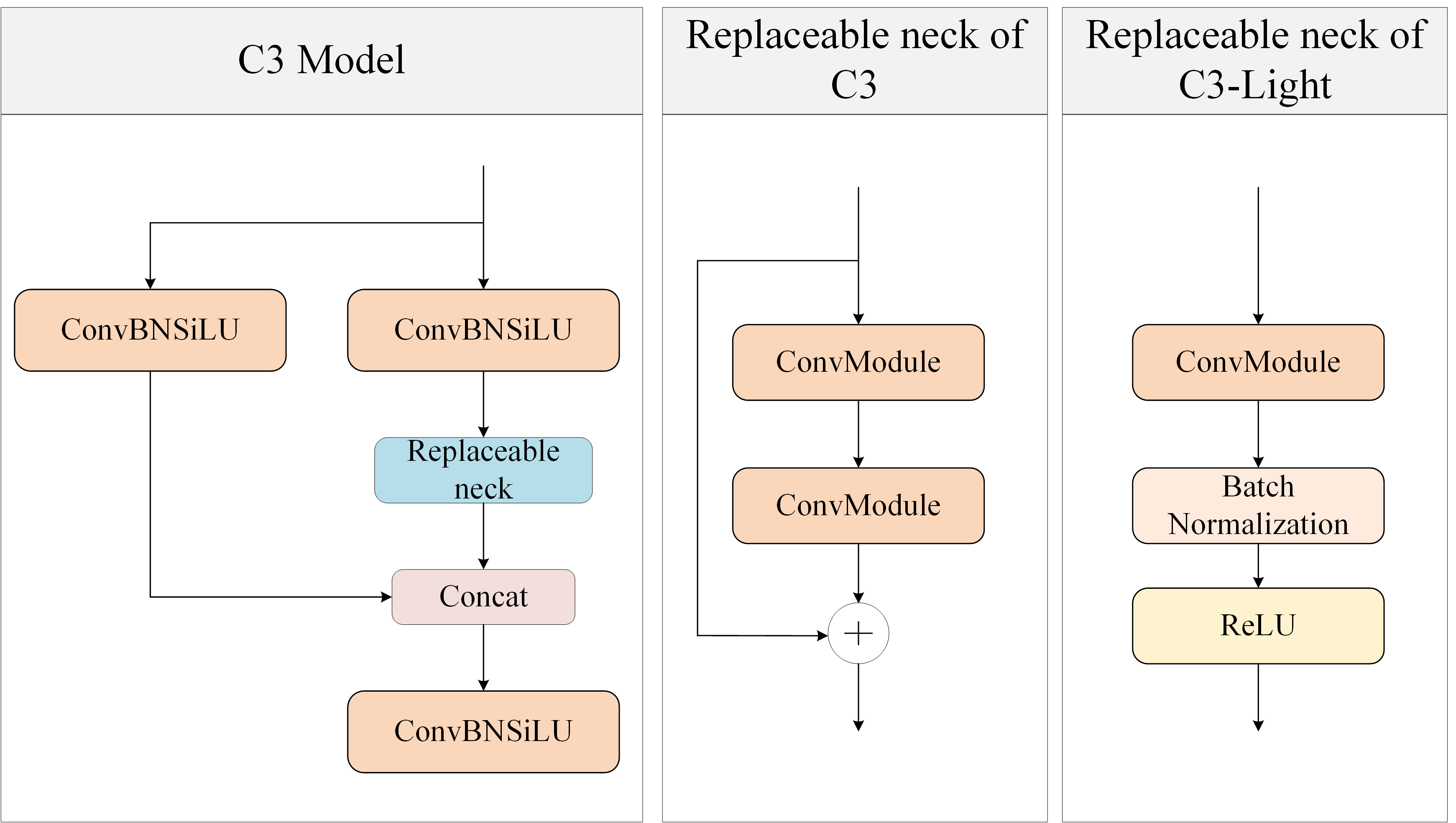

The Figure 5 shows the modified YOLOv5 network structure. C3 in the head is replaced with C3-light, which reduces the number of network layers in the early stage of processing after image input and speeds up the early stage of image processing. In the Attention part of the figure, attention mechanisms can be added.

3.3. Experimental Equipment and Experiment Setting

The experiment is carried out on a server equipped with an NVIDIA GeForce RTX 4080 Super GPU (memory of GPU is 16 GB), Intel Core i9-13900K CPU, and 32 GB memory of DDR5 version. The GPU provides strong computing power support for the training and inference of the deep learning model, ensuring the efficiency of the experiment.

The deep learning framework used in this research is PyTorch. The Python programming language is used for code implementation, and related libraries such as NumPy and OpenCV are also used for data processing and visualization. The details of the software and experiment are shown in Table 1.

Table 1. Experimental parameter setting.

Parameter	Value
Python version	3.8.1.8
PyTorch version	2.1.0
Wandb version	0.16.3
CUDA version of NVIDIA	12.0
CUDA version of PyTorch	11.7
Epochs	500
Input image size	640
Batch size	8

Three basic groups of comparison experiments are set up. The lightweight C3-Light model proposed by combining the 5s model in YOLOv5 with the mainstream attention mechanism LSE and CBAM is used to compare the lightweight results.

3.4. Evaluation Index Selection

The evaluation indexes include accuracy (Precision), recall rate (Recall), and mean average precision (mAP). Accuracy refers to the proportion of true positive examples among all the samples predicted as positive examples by the model., Recall refers to the proportion of positive examples that are correctly predicted as positive examples by the model among all actual positive example samples. These indexes can comprehensively evaluate the performance of the model in apple-picking recognition, where mAP is the main evaluation index, which reflects the average precision of the model in different IoU (Intersection over Union) thresholds.

In the Equation 1, 2 and 3, TP represents the true cases, FN represents the false negative cases, FP represents the false positive cases, and n represents the total number of cases.

4. Experimental Results Analysis

4.1. Comparative Experiments

To visually showcase the detection effectiveness of the algorithm proposed in this paper, a comparison experiment was conducted between the YOLOv5s model and the proposed model in terms of the confusion matrix. The results of this comparison are presented in Figure 6. In the confusion matrix, the rows denote the true categories, and the columns represent the predicted categories. The proportions of successfully predicted categories are indicated by the values within the diagonal regions, whereas the proportions of incorrectly predicted categories are reflected by the values in the off-diagonal regions.

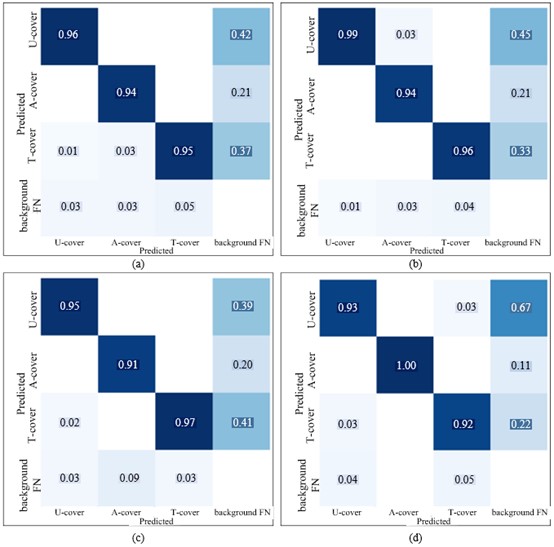

The comparison results in Figure. 6 show that the diagonal region of the model confusion matrix of CBAM is darker than that of the YOLOv5s matrix, indicating improved accuracy. The diagonal region of the confusion matrix of the proposed CBAM-C3L model has little change in color than that of the diagonal region of the YOLOv5s matrix, which indicates that the model proposed in this paper maintains the original accuracy in accurately predicting object categories.

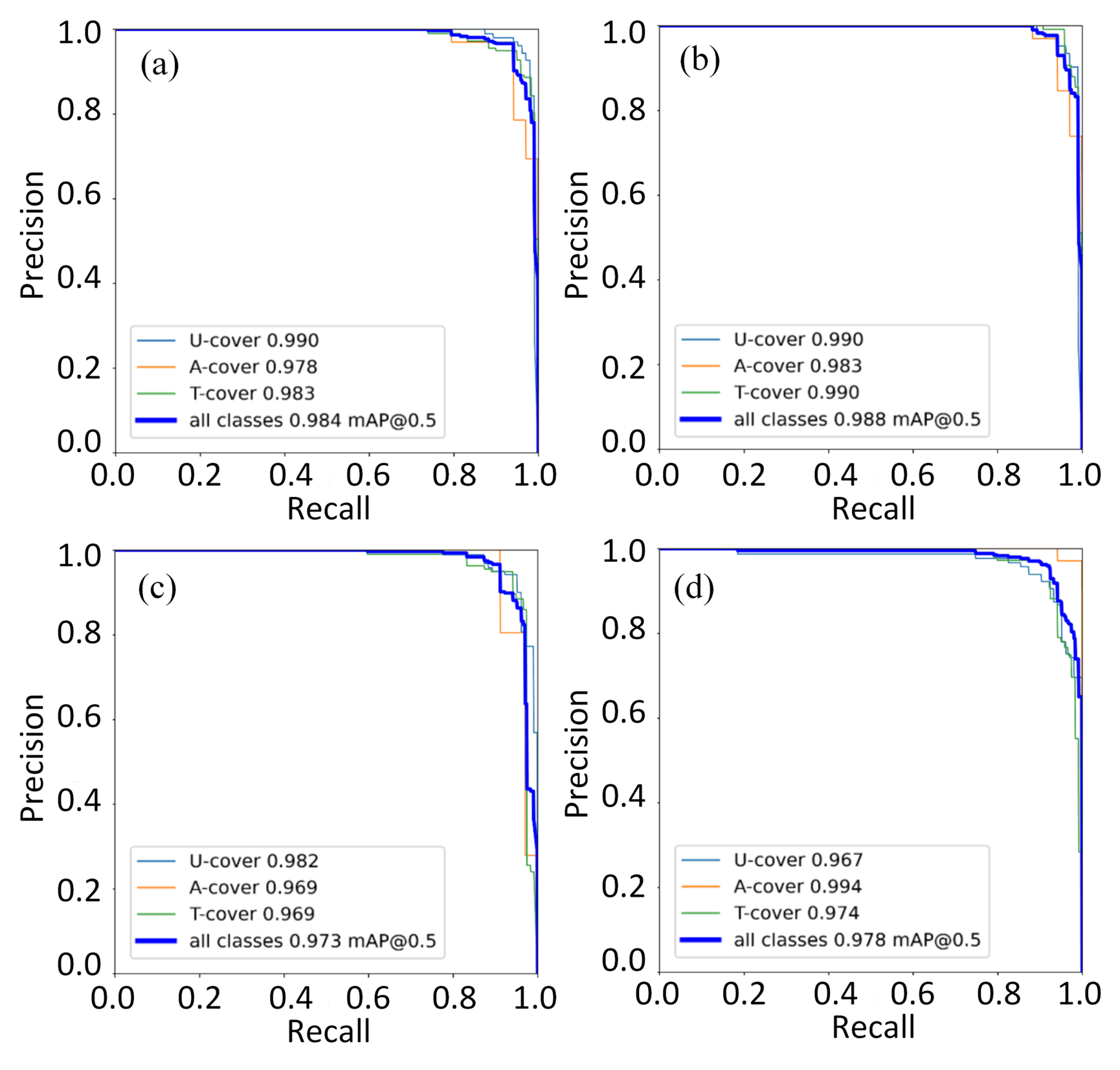

The experimental results of Figure 7. show that the optimized C3light algorithm based on YOLOv5 has significantly improved performance compared with the original algorithm. In terms of mAP, the optimized algorithm has increased by 0.4% compared with the original algorithm. In comparison with other mainstream algorithms, the optimized algorithm has increased by 0.5%, the improvement is more obvious in complex algorithms.

4.2. Visualization of the Results

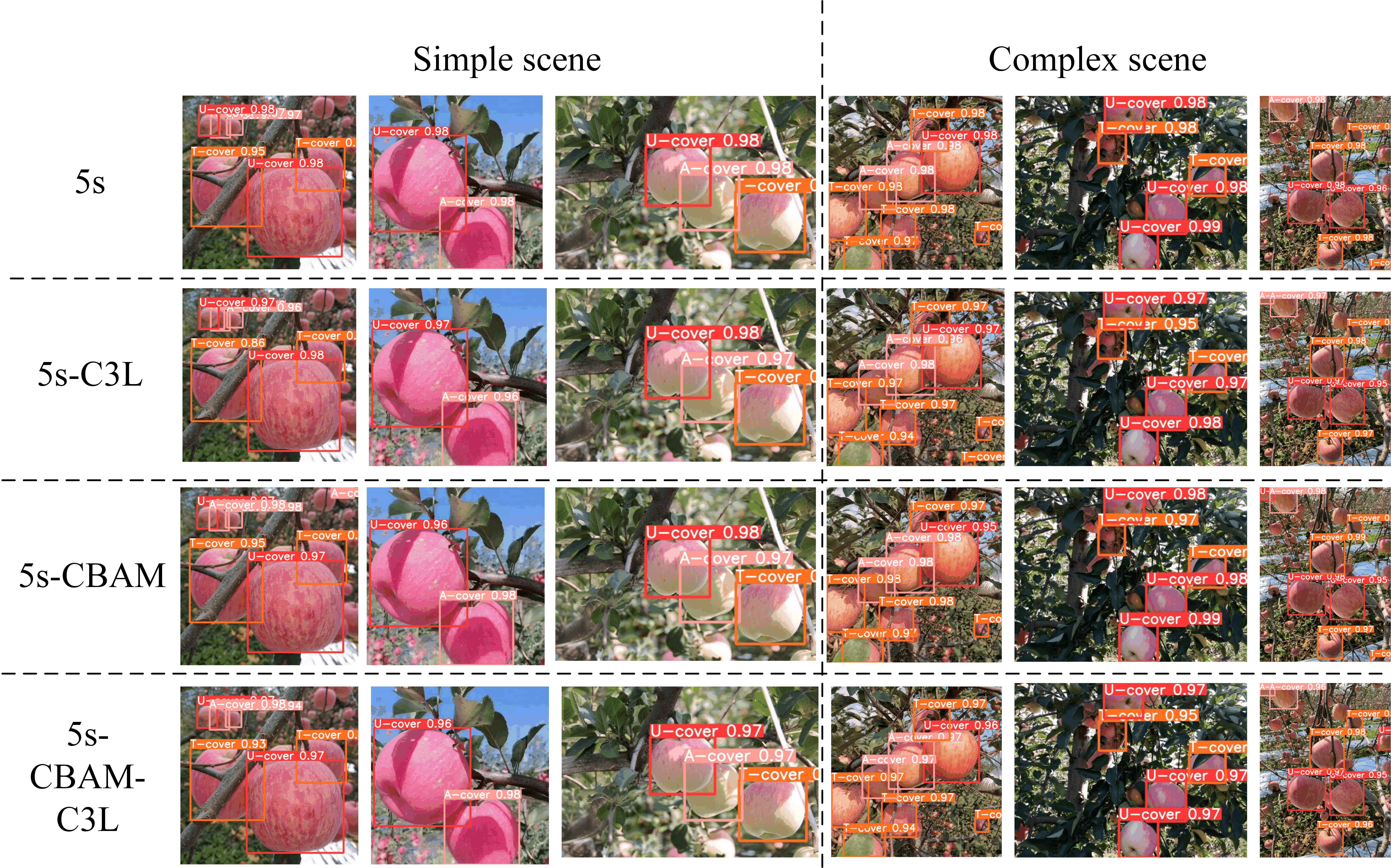

In order to more intuitively compare the effectiveness of the proposed algorithm and the comparison algorithm in detecting apple picking recognition, the same test set is used for apple detection, and part of the detection effects are shown in Figure. 8. As can be seen from the Figure 8, the original YOLOv5s model has the problem of missing detection, and the detection performance of some categories is particularly poor, while the C3-Light model combined with CBAM attention mechanism is superior to the original YOLOv5s model in missing detection effect. The application of C3-Light model in the two models can maintain a good state of detection accuracy, and the accuracy is reduced by 0.1% on average. When the apples are partially occluded, although the recognition accuracy is slightly affected, it still keeps great accuracy. This shows that the algorithm has a certain degree of robustness in dealing with complex orchard environments.

4.3. Comparison of Microcontroller Adaptation with Different Models

The parameters of the model in the running process can show the smoothness of the algorithm transplanted to the single-chip computer. Furthermore, the evaluation metrics also involve the model computational complexity (GFLOPs), the number of model parameters (Parameters), the memory using GPU (G-memory) and layers (Layers). The model's computational complexity serves as a crucial indicator for evaluating the efficiency of the model, while the number of model parameters is the key metric for assessing the capacity of the model. The detection speed, indicated by the frames per second, is utilized to appraise the model's ability to process image frames per second.

Table 2. Comparison of experimental results of different network models.

Models	GFLOPs	Parameters	G-memory	Layers
5s	16.0	7027720	2.08	270
5s-C3L	13.2	5970376	1.86	215
5s-CBAM	16.0	7060586	2.09	281
5s-CBAM-C3L	13.3	6003242	1.84	226
5s-LSE	17.3	7093320	2.09	277
5s-LSE-C3L	14.5	6035976	1.86	222

In order to verify the proposed C3-Light effect, another LSE attention mechanism is added in this part, which is improved by SE. As can be seen from the Table 2, the convolution layer is fixed and reduced by 55 layers. After replacing C3 model in 5s, CBAM and LSE models, GFLOPs decreased by 17.5%, 16.9% and 16.2%. Reduced by 10.6%, 12%, 11% on GPU memory calls. The reduction of these parameters can improve the smooth running of the model in the single-chip computer and reduce the delay.

5. Conclusion

The innovation of this research lies in the comprehensive optimization of the C3light algorithm based on YOLOv5. By introducing the CBAM attention mechanism and improving the feature fusion method, the ability of the network to extract and utilize apple features is enhanced.

1. Compared with YOLOv5s, the C3-Light model has a slight improvement in mAP-0.5, and the improvement effect is better after adding CBAM attention mechanism, which can also maintain the effect in more complex network structures.

2. The C3-Light model can effectively reduce the use of hardware resources, which can reduce about 17% in GFLOPs and about 11% in GPU memory calls.

This research successfully optimizes the C3light lightweight algorithm based on YOLOv5 for apple-picking recognition. Through improvements in network structure and training strategy, the performance of the algorithm is significantly improved. The experimental results show that the optimized algorithm has better hardware resource scheduling ability than the original algorithm and other mainstream methods, and can maintain approximate accuracy, and has a certain robustness in different scenarios.

6. Future work

This research only indirectly analyzes the smoothness of the application on the single chip microcomputer through parameters, and then migrates the algorithm to the single chip microcomputer for experiments in the later stage, and initially chooses Raspberry PI, STM32 and Arduino for environment deployment and construction, which may face problems such as data migration between different systems and camera selection. After successful deployment, the algorithm will be improved for a variety of fruit and picking scenarios.

Author Contributions

Kecheng SHAN and Quanhong FENG improved the algorithm and analysed the data, Xiaowei LI, Xianglong MENG, Hongkuan LYU (LV) and Chenfeng WANG collected the data of apple, Liyang MU drew the flow chart, Xin LIU did the typesetting and suggested changes.
